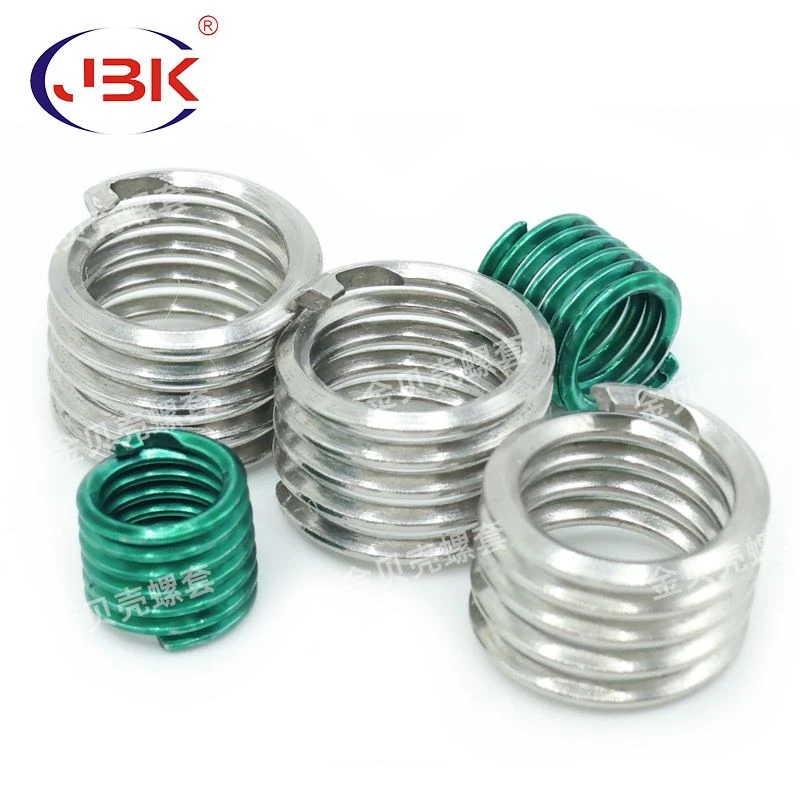

Tswj kev ncaj ncees tom qab siv txuas ntxiv: Tailless hlau ntxig rau cov ntawv thov ntev ntev
Cov khoom lag luam
Tailless hlau ntxigyog engineered los tuav kev ntseeg siab los ntawm kev siv txuas ntxiv, ua kom muaj kev ua haujlwm tsis txaus ntseeg (1850mpa) thiab qhia<0.1% dimensional creep. The tailless design eliminates stress concentrations that cause fatigue failure, proven by 1.5 million vibration cycles (10-2000Hz) without thread degradation-40% better than traditional tailed inserts.
Hauv kev muaj kev sib tw tiag tiag, cov ntxig no txo cov tshuab sib kho tsis muaj 50%, thaum los tiv thaiv {, {}} cua sov mus ({-40℃rau 120 degree) {12% los ntawm kev siv lub zog tsawg dua, cov khoom siv tsis tau muaj dua los ntawm kev siv cov khoom siv tsawg dua los ntawm 35% los ntawm kev txo cov khoom siv thiab kev tshuaj xyuas xav tau .
Cov khoom lag luam
Chaw Thov:
Dav siv nyob rau hauv aerospace, tsheb tsim, lub zog khoom siv, tshwj xeeb tsim nyog rau ib puag ncig kev cai uas muaj kev sib tw ua haujlwm thiab lwm yam kev cai sib txawv .
Cov lus qhia teeb tsa:
1.} Siv tus kais tshwj xeeb los ua qhov teeb tsa
2.} Siv cov cuab yeej teeb tsa sib xyaw rau kev sib dhos
3.} Ua kom cov kev teeb tsa yog tshem tawm tom qab kev teeb tsa
4. Nws pom zoo kom ntxuav lub qhov xov thiab tshem cov burrs ua ntej kev teeb tsa
Cov khoom no tau dhau Iso 9001 Daim ntawv pov thawj kev tswj hwm zoo thiab ua raws li cov neeg siv cov kev pab cuam sib txuas hauv ntiaj teb no
Cov khoom lag luam
Cov FAQ
Q: Kuv puas tuaj yeem tau txais cov qauv dawb?
A: Yog lawm, koj tuaj yeem tau txais cov qauv dawb los ntawm peb cov khoom lag luam uas twb muaj lawm.
Q: Kuv puas tuaj yeem tau txais cov qauv tsim los ntawm kuv tus kheej?
A: Ntawm chav kawm, thiab peb yuav xa tus qauv coj mus rau koj tom qab ntau lawm .
Q: Kuv puas tuaj yeem luam peb lub logo thiab xaiv xim?
A: Kom paub tseeb .
Q: Koj qhov zoo yog dab tsi?
A: {1. Tshaj 20 xyoo dhau los ntawm kev tsim thiab xa tawm .
{{02. Zoo zoo nrog kev sib tw nqi.
3. Txaus siab thov kev muag khoom ua ntej thiab tom qab muag kev pabcuam .
4.}} Txhua cov khoom tuaj yeem ua tau customized.
| Metric Series Hlau Tes Tsho Tes Haujlwm Txheej Txheem Kev Lag Luam Ntawv - Metric (Metric) coOre This | ||||||||
| Nominal Inch (D) | Suab ntawm kauv (p) | Nominal ntev | Tus naj npawb ntawm laps (w) |
Txheej hauv lub taub nyob rau hauv lub xeev pub dawb (DZ) |
Laum dia (ua) |
DRILLING qhov tob (L3) |
Tiag tiag ntev (L2) |
|
| ×d | ×L1 | |||||||
| 1.4 | 0.3 | 1d | 1.4 | 2.5 | 1.80-2.00 | 1.5 | 2.3 | 0.9 |
| 1.5d | 2.1 | 4.5 | 3 | 1.6 | ||||
| 2d | 2.8 | 7.0 | 3.7 | 2.3 | ||||
| 1.6 | 0.35 | 1d | 1.6 | 3.1 | 2.06-2.26 | 1.7 | 2.7 | 1.1 |
| 1.5d | 2.4 | 4.5 | 3.5 | 1.9 | ||||
| 2d | 3.2 | 6.2 | 4.3 | 2.7 | ||||
| 2.5d | 4.0 | 8.0 | 5.1 | 3.5 | ||||
| 3d | 4.8 | 10.1 | 5.9 | 4.3 | ||||
| 2 | 0.4 | 1d | 2.0 | 3.2 | 2.53-2.70 | 2.1 | 3.6 | 1.6 |
| 1.5d | 3.0 | 5.3 | 4.6 | 2.6 | ||||
| 2d | 4.0 | 7.4 | 5.6 | 3.6 | ||||
| 2.5d | 5.0 | 9.5 | 6.6 | 4.6 | ||||
| 3d | 6.0 | 11.6 | 7.6 | 5.6 | ||||
| 2.5 | 0.45 | 1d | 2.5 | 3.6 | 3.20-3.70 | 2.6 | 4.3 | 2.1 |
| 1.5d | 3.75 | 5.9 | 5.6 | 3.3 | ||||
| 2d | 5.0 | 8.2 | 6.8 | 4.6 | ||||
| 2.5d | 6.25 | 10.5 | 8.1 | 5.8 | ||||
| 3d | 7.5 | 12.8 | 9.3 | 7.0 | ||||
| 3 | 0.5 | 1d | 3.0 | 4.2 | 3.80-4.35 | 3.1 | 5.0 | 2.5 |
| 1.5d | 4.5 | 6.8 | 6.5 | 4.0 | ||||
| 2d | 6.0 | 9.4 | 8.0 | 5.5 | ||||
| 2.5d | 7.5 | 12 | 9.5 | 7 | ||||
| 3d | 9.0 | 14.6 | 11.0 | 8.5 | ||||
| 4 | 0.7 | 1d | 4.0 | 4 | 5.05-5.60 | 4.2 | 6.8 | 3.3 |
| 1.5d | 6.0 | 6.6 | 8.8 | 5.3 | ||||
| 2d | 8.0 | 9.1 | 10.8 | 7.3 | ||||
| 2.5d | 10.0 | 11.7 | 12.8 | 9.3 | ||||
| 3d | 12.0 | 14.2 | 14.8 | 11.3 | ||||
| 5 | 0.8 | 1d | 5.0 | 4.4 | 6.25-6.80 | 5.2 | 8.2 | 4.2 |
| 1.5d | 7.5 | 7.1 | 10.7 | 6.7 | ||||
| 2d | 10.0 | 9.9 | 13.2 | 9.2 | ||||
| 2.5d | 12.5 | 12.6 | 15.7 | 11.7 | ||||
| 3d | 15.0 | 15.3 | 18.2 | 14.2 | ||||
| 6 | 1 | 1d | 6.0 | 4.3 | 7.58-7.95 | 6.2 | 10.0 | 5.0 |
| 1.5d | 9.0 | 6.9 | 13.0 | 8.0 | ||||
| 2d | 12.0 | 9.6 | 16.0 | 11.0 | ||||
| 2.5d | 15.0 | 12.2 | 19.0 | 14.0 | ||||
| 3d | 18.0 | 14.9 | 22.0 | 17.0 | ||||
| 7 | 1 | 1d | 7.0 | 5.2 | 8.58-9.20 | 7.2 | 11.0 | 6.0 |
| 1.5d | 10.5 | 8.3 | 14.5 | 9.5 | ||||
| 2d | 14.0 | 11.5 | 18.0 | 13.0 | ||||
| 2.5d | 17.5 | 14.6 | 21.5 | 16.5 | ||||
| 3d | 21.0 | 17.4 | 25.5 | 20.5 | ||||
| 8 | 1.25 | 1d | 8.0 | 4.8 | 9.85-10.35 | 8.3 | 13.0 | 6.8 |
| 1.5d | 12.0 | 7.4 | 17.0 | 10.8 | ||||
| 2d | 16.0 | 10.6 | 21.0 | 14.8 | ||||
| 2.5d | 20.0 | 13.5 | 25.0 | 18.8 | ||||
| 3d | 24.0 | 16.5 | 29.0 | 22.8 | ||||
| 9 | 1.25 | 1d | 9.0 | 5.5 | 10.85-11.1 | 9.3 | 14.0 | 7.75 |
| 1.5d | 13.5 | 8.9 | 18.5 | 12.25 | ||||
| 2d | 18.0 | 12.2 | 23.0 | 16.75 | ||||
| 2.5d | 22.5 | 15.5 | 27.5 | 21.25 | ||||
| 3d | 27.0 | 18.8 | 32.0 | 25.75 | ||||
| 10 | 1.5 | 1d | 10.0 | 5.0 | 12.10-12.80 | 10.3 | 16.0 | 8.5 |
| 1.5d | 15.0 | 8.1 | 21.0 | 13.5 | ||||
| 2d | 20.0 | 11.2 | 26.0 | 18.5 | ||||
| 2.5d | 25.0 | 14.2 | 31.0 | 23.5 | ||||
| 3d | 30.0 | 17.3 | 36.0 | 28.5 | ||||
| 11 | 1.5 | 1d | 11.0 | 5.7 | 13.10-13.50 | 11.3 | 17.0 | 9.5 |
| 1.5d | 16.5 | 9.1 | 22.5 | 15.0 | ||||
| 2d | 22.0 | 12.5 | 28.0 | 20.5 | ||||
| 2.5d | 27.5 | 15.9 | 33.5 | 26.0 | ||||
| 3d | 33.0 | 19.1 | 39.0 | 31.5 | ||||
| 12 | 1.75 | 1d | 12.0 | 5.3 | 14.50-15.00 | 12.4 | 19.0 | 10.3 |
| 1.5d | 18.0 | 8.4 | 25.0 | 16.3 | ||||
| 2d | 24.0 | 11.6 | 31.0 | 22.3 | ||||
| 2.5d | 30.0 | 14.8 | 39.0 | 30.3 | ||||
| 3d | 36.0 | 18.0 | 43.0 | 34.3 | ||||
| 14 | 2 | 1d | 14.0 | 5.4 | 16.87-17.87 | 14.5 | 22.0 | 12.0 |
| 1.5d | 21.0 | 8.7 | 29.0 | 19.0 | ||||
| 2d | 28.0 | 11.9 | 36.0 | 26.0 | ||||
| 2.5d | 35.0 | 15.2 | 43.0 | 33.0 | ||||
| 3d | 42.0 | 18.4 | 50.0 | 40.0 | ||||
| 16 | 2 | 1d | 16.0 | 6.3 | 18.87-19.90 | 16.5 | 24.0 | 14.0 |
| 1.5d | 24.0 | 10.0 | 32.0 | 22.0 | ||||
| 2d | 32.0 | 13.7 | 40.0 | 30.0 | ||||
| 2.5d | 40.0 | 17.5 | 48.0 | 38.0 | ||||
| 3d | 48.0 | 21.2 | 56.0 | 46.0 | ||||
| 18 | 2.5 | 1d | 18.0 | 5.6 | 21.40-22.00 | 18.6 | 28.0 | 15.5 |
| 1.5d | 27.0 | 9.0 | 37.0 | 24.5 | ||||
| 2d | 36.0 | 12.3 | 46.0 | 33.5 | ||||
| 2.5d | 45.0 | 15.7 | 55.0 | 42.5 | ||||
| 3d | 54.0 | 19.0 | 64.0 | 51.5 | ||||
| 20 | 2.5 | 1d | 20.0 | 6.3 | 23.46-24.40 | 20.6 | 30.0 | 17.5 |
| 1.5d | 30.0 | 10.0 | 40.0 | 27.5 | ||||
| 2d | 40.0 | 13.8 | 50.0 | 37.5 | ||||
| 2.5d | 50.0 | 17.5 | 60.0 | 47.5 | ||||
| 3d | 60.0 | 21.2 | 70.0 | 57.5 | ||||
| 22 | 2.5 | 1d | 22.0 | 6.9 | 25.61-26.90 | 22.6 | 32.0 | 19.5 |
| 1.5d | 33.0 | 11.0 | 43.0 | 30.5 | ||||
| 2d | 44.0 | 15.0 | 54.0 | 41.5 | ||||
| 2.5d | 55.0 | 19.0 | 65.0 | 52.5 | ||||
| 3d | 66.0 | 23.0 | 76.0 | 63.5 | ||||
| 24 | 3 | 1d | 24.0 | 6.3 | 28.15-29.10 | 24.7 | 36.0 | 21.0 |
| 1.5d | 36.0 | 10.0 | 48.0 | 33.0 | ||||
| 2d | 48.0 | 13.7 | 60.0 | 45.0 | ||||
| 2.5d | 60.0 | 17.5 | 72.0 | 57.0 | ||||
| 3d | 72.0 | 21.2 | 84.0 | 69.0 | ||||
| 27 | 3 | 0.75d | 20.25 | 5.0 | 31.15-32.40 | 27.8 | 32.5 | 17.5 |
| 1d | 27.0 | 7.2 | 39.0 | 24.0 | ||||
| 1.5d | 40.5 | 11.4 | 52.5 | 37.5 | ||||
| 2d | 54.0 | 15.4 | 66.0 | 51.0 | ||||
| 2.5d | 67.5 | 19.5 | 79.5 | 64.5 | ||||
| 30 | 3.5 | 1d | 30.0 | 6.9 | 34.70-35.81 | 30.9 | 44.0 | 26.5 |
| 1.5d | 45.0 | 11.0 | 59.0 | 41.5 | ||||
| 2d | 60.0 | 15.0 | 74.0 | 56.5 | ||||
| 2.5d | 75.0 | 19.0 | 89.0 | 71.5 | ||||
| 3d | 90.0 | 23.0 | 104.5 | 86.5 | ||||
| 33 | 3.5 | 0.75d | 24.8 | 5.6 | 37.70-39.01 | 33.9 | 38.8 | 21.3 |
| 1d | 33.0 | 7.8 | 47.0 | 29.5 | ||||
| 1.5d | 49.5 | 12.2 | 63.5 | 46.0 | ||||
| 2d | 66.0 | 16.5 | 80.0 | 62.5 | ||||
| 36 | 4 | 0.75d | 27.0 | 5.1 | 41.33-42.67 | 37.0 | 43.0 | 23.0 |
| 1d | 36.0 | 7.0 | 52.0 | 32.0 | ||||
| 1.5d | 54.0 | 11.1 | 70.0 | 50.0 | ||||
| 2d | 72.0 | 15.2 | 88.0 | 68.0 | ||||
